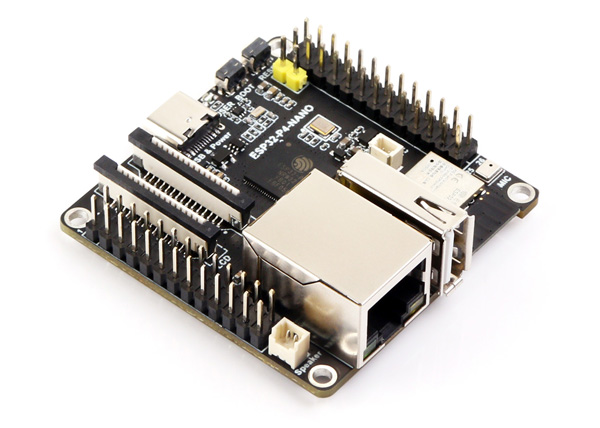

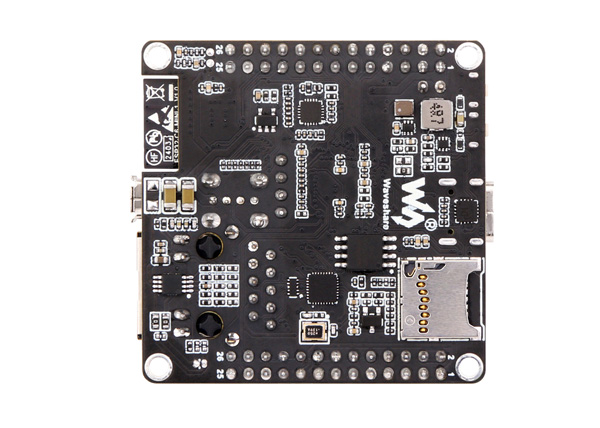

This product is a high-performance development board based on the ESP32-P4 chip, featuring a dual-core plus single-core RISC-V architecture. It supports a wide range of human-machine interaction interfaces, including MIPI-CSI (with integrated Image Signal Processor, ISP) and MIPI-DSI interfaces. In addition, it supports common peripherals such as SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, and TWAI.
It also supports high-speed connectivity options including USB OTG 2.0 HS, Ethernet, and SDIO Host 3.0. The ESP32-P4 chip integrates a digital signature peripheral and a dedicated key management unit to ensure the security of data and operations. The ESP32-P4-NANO is specifically designed for high-performance and high-security applications, fully meeting the advanced requirements of embedded systems in terms of human-machine interface support, edge computing capability, and I/O connectivity.
Product Introduction
| Item | Specifications & Features |
|---|---|
| Core Architecture | RISC-V Dual-Core (HP System) @ 360MHz + RISC-V Single-Core (LP System) @ 40MHz |
| Wireless Connectivity | Onboard ESP32-C6-MINI-1 module, supports Wi-Fi 6 and Bluetooth 5/BLE (Connected via SDIO) |
| Storage System | On-die Stacked 32MB PSRAM + Onboard 16MB Nor Flash |
| Video Processing | Supports H.264 & JPEG Hardware Encoding (1080P@30fps), Integrated ISP (Image Signal Processor) |
| Graphics Acceleration | Integrated PPA (Pixel Processing Accelerator) and 2D-DMA (2D Graphics Acceleration Controller) |
| Key Interfaces | MIPI-DSI (2-lane display interface), MIPI-CSI (2-lane camera interface), 100M Ethernet Port, USB 2.0 OTG (Type-A), SDIO 3.0 Card Slot |
| Audio Features | Onboard SMD Microphone, Speaker Interface (Supports 8Ω 2W speaker) |
| Expansion Capability | Accessible via 2x2x13 Pin Headers (28 programmable GPIO pins total) |
| Special Features | Reserved PoE (Power over Ethernet) module interface for single-cable power and data |
| Power Supply Options | Type-C Power Supply / 5V External Interface / PoE Module Power Supply (Reserved) |
| Development Environment | Officially recommended ESP-IDF (v5.5.1+ required), also supports Arduino (limited adaptation) |
Key Features:
- High-performance MCU with 32-bit RISC-V dual-core plus single-core processors
- 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, and 8 KB TCM
- Powerful image and audio processing capabilities, including:
- JPEG encoder/decoder
- Pixel Processing Accelerator (PPA)
- Image Signal Processor (ISP)
- H.264 video encoder
- 32 MB PSRAM stacked within the chip package, with 16 MB external NOR Flash
- Onboard interfaces including MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 (SD card slot), microphone, speaker terminals, and RTC battery connector
- 2 × 2 × 13 pin headers providing access to 28 available programmable GPIOs
- Security features: secure boot, Flash encryption, hardware cryptographic accelerators, and hardware random number generator; also supports hardware access protection with Access Permission Management (APM) and privilege separation
