The ESP32-S3 AI Smart Camera Module is a high-performance edge AI development module designed specifically for smart home and IoT applications. It integrates a camera, microphone, audio amplifier, ambient light sensor, and infrared night-vision fill light, enabling localized AI inference without relying on the cloud. Leveraging advanced technology stacks such as TensorFlow Lite, YOLO, and OpenCV, combined with low-code development tools, users can rapidly deploy customized AI models.
The module provides Xiaozhi AI firmware and OpenAI integration tutorials, enabling voice conversations, intelligent Q&A, and other interactive scenarios. It also offers Home Assistant integration tutorials, supporting image recognition, voice interaction, object detection, and anomaly analysis. This makes it suitable for smart security, home care, AI toys, industrial inspection, and other scenarios, delivering a high-privacy, low-latency, 24/7 AI solution.
Powerful AI Processing for Edge Image and Voice Recognition
The ESP32-S3 AI smart camera module is a multifunctional development platform with integrated edge AI processing capabilities and strong neural network computing power. It supports local execution of TensorFlow Lite models and no-code training with Edge Impulse, significantly lowering the barrier to AI development.
Through OpenCV and YOLO, the module enables efficient local image recognition and object detection, while remaining compatible with cloud AI services for extended intelligent interaction scenarios. It also innovatively integrates multimodal inputs (voice and vision), allowing real-time voice command parsing and environmental perception to run independently even without network connectivity. This design balances low latency and privacy security, providing a full-stack AI solution for smart hardware from edge computing to the cloud.
Integrated Voice Interaction for Enhanced Usability
The onboard OV3660 camera, microphone, and audio amplifier speaker support speech recognition (ASR) and interactive dialogue powered by Xiaozhi Robot, OpenAI integration tutorials, and ChatGPT. This enables intuitive voice commands and real-time interaction.
Such integration allows intelligent automation in IoT devices, using Xiaozhi Robot’s natural language processing technology to simplify control and enhance the user experience. The ESP32-S3 AI smart camera module’s voice recognition capabilities open up possibilities for voice-controlled smart assistants, AI-powered surveillance, and hands-free device management.
24/7 Monitoring, Even in Dark Environments

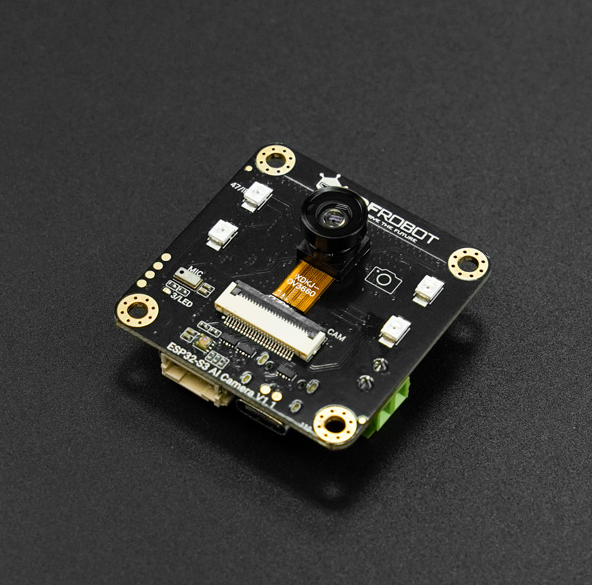

The ESP32-S3 AI smart camera module features an onboard OV3660 160° wide-angle camera, infrared fill light, and ambient light sensor, allowing it to capture images in low-light or completely dark environments. Whether during the day or at night, the module provides visual data to ensure monitoring systems operate under all lighting conditions.
Combined with Home Assistant, it enables intelligent monitoring management, further improving security and convenience in IoT environments and providing comprehensive, all-day security protection.
Hardware Features

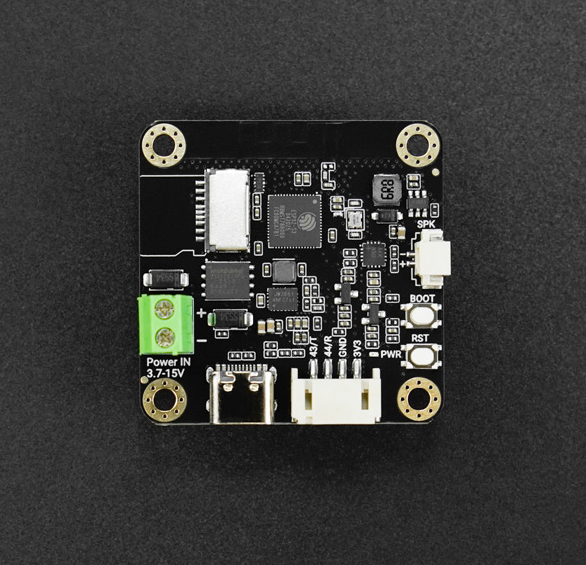

- Powered by the ESP32-S3 chip, with 8 MB PSRAM and 16 MB Flash for larger code storage space
- Onboard 2MP 160° wide-angle infrared night-vision camera for a wider field of view
- Onboard infrared fill light and ambient light sensor for image capture at night
- Onboard MEMS microphone and amplifier speaker for voice interaction
- Compact size: only 42 × 42 mm
Application Scenarios
- Smart Security: Face recognition access control, license plate detection systems, abnormal behavior analysis
- Home Care: Baby sleep monitoring, elderly fall alerts, pet behavior recognition
- AI Toys: Educational robots, intelligent interactive companions
- Industrial Inspection: Defect detection, production line OCR, equipment status monitoring
