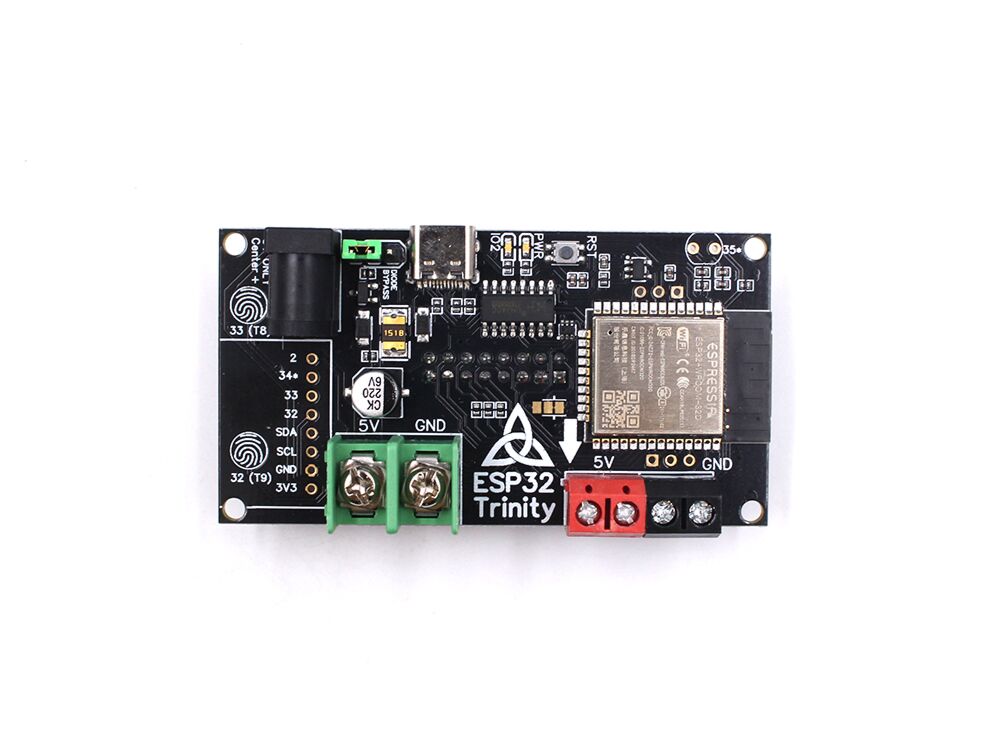

ESP32‑Trinity is an open‑source ESP32 driver board specifically designed to drive HUB75 RGB LED matrix panels. It was designed by maker Brian Lough. The hardware is fully open‑source, featuring a jumper‑free, direct‑plug design for large panels, high‑current power supply, and stable refresh rates.
I. Core Positioning
- Main Controller: Onboard standard ESP32‑WROOM‑32 module (dual‑core 240MHz, Wi‑Fi + Bluetooth)
- Purpose: Dedicated driver board for HUB75 / RGB matrix panels – replaces complex jumper wiring, plugs directly into HUB75 interface
- Open Source: Hardware schematics, Gerber files, and BOM fully open‑source (CERN OHL license)
- Library Support: Optimized for the ESP32‑HUB75‑MatrixPanel‑I2S‑DMA library – no screen tearing or stuttering
II. Hardware Structure & Interfaces
① Direct HUB75 Connector
- Onboard 2×8 HUB75 socket – directly plug in 64×32, 64×64 and other RGB panels
- No jumper wires – eliminates poor contact and signal interference
② Power Supply (Most Critical Feature)
- DC 5.5×2.1 power jack + high‑current terminal block
- Supports 5V high‑current supply (up to ~8A)
- USB‑C is for programming and low‑current operation only – not for powering a fully lit large panel
③ Onboard Peripherals
- LDR (light‑dependent resistor): Automatically adjusts panel brightness based on ambient light
- MPU6050 (GY521) socket: Reserved for motion / shake interaction
- Broken‑out GPIO, I2C, UART: Easy expansion with buttons, sensors, etc.
④ Other Features
- Built‑in reset button and BOOT button
- Pin mapping is perfectly matched to the driver library – no need to modify pin tables manually
III. Supported Panels
Primarily supports HUB75 / HUB75E interface RGB matrix panels:
- 32×16, 32×32
- 64×32, 64×64
- Cascading multiple panels to form larger walls is partially supported
The board is purpose‑built for these panels. Regular panels and WS2812 LED strips can also be used, but that is not its main strength.
IV. Advantages Over a Standard ESP32
| Comparison | Standard ESP32 | ESP32‑Trinity |
|---|---|---|
| HUB75 wiring | 10+ jumper wires | Direct plug – zero jumpers |
| Power delivery | Weak – prone to blackouts / flickering | Dedicated high‑current supply |
| Signal interference | Prone to glitches and shaking | Optimized layout – more stable |
| Light sensor / motion | None | Onboard, ready to use |
| Ease of use | High learning curve – pin configuration required | Extremely low – works out of the box |
V. Typical Applications
- LED clock, weather display, stock ticker
- Music spectrum visualizer
- Pixel art animation wall
- Information board for shops / exhibition halls
- Gaming room ambient large display
ESP32‑Trinity is currently the most mature, hassle‑free, and hardware‑optimized dedicated driver board for HUB75 RGB matrix panels. It integrates the ESP32, panel driver, high‑current power supply, and sensor interfaces all in one – turning “hours of wiring and debugging” into “plug and play.”
