For ESP32 PCB EMC design, focus on: stackup (4-layer), power decoupling (0.1μF <3mm away), crystal layout (>2.5mm clearance), antenna keep-out (5mm area). Following these points can increase first-pass CE/FCC pass rate by over 70%.
Key Takeaways
- ✅ 4-layer PCB is the minimum EMC requirement: Espressif officially recommends 4-layer PCB (Top signal / Layer 2 solid GND / Layer 3 power + local signals / Bottom auxiliary signals). 2-layer designs must strictly follow additional rules.
- ✅ Power decoupling “3-step rule”: Every VDD pin needs a 0.1μF high-frequency capacitor placed ≤3mm away. RF-related pins require an additional 10μF + 0.1μF combo plus CLC/LC filter.
- ✅ Crystal layout “three no’s”: No signal traces underneath, no vias on clock traces, and maintain ≥2.5mm clearance from ESP32 clock pins to avoid crosstalk that affects RF sync accuracy (±800Hz tolerance).
- ✅ Antenna keep-out is non-negotiable: At least 5mm clearance around the antenna radiator, a solid ground plane underneath (≥20mm×15mm recommended), and the antenna must protrude from the board edge or be placed at a corner.
- ✅ Loop area determines EMI level: High-frequency signals must run tightly coupled to a ground plane to minimize the return current loop – this is the most effective PCB-level radiation suppression method.
Introduction
The smart home and industrial IoT markets are experiencing explosive growth, making Wi-Fi + Bluetooth dual-mode SoCs the core of countless embedded systems. While the ESP32’s high integration delivers exceptional functional density, it also presents a thorny problem for hardware engineers – poor EMC design leads to CE/FCC certification failures and production delays.
Industry statistics show that over 40% of smart home product launches are delayed due to EMC test failures, and up to 30% of hardware cost optimization potential lies hidden in the PCB design phase. These problems aren’t caused by a single wrong component – they are structural flaws at the PCB level: broken return paths, sloppy decoupling placement, improper stackups.
This guide provides a systematic, engineering-focused walkthrough of EMC design essentials for ESP32 PCBs – from stackup selection and power integrity optimization to crystal layout rules and antenna design guidelines – everything you need to build a Class B certified ESP32 custom board. It is written for hardware engineers, product managers, and independent developers.
What is EMC in ESP32 PCB Design
Electromagnetic Compatibility (EMC) is the ability of an electronic device to operate properly in its electromagnetic environment without causing intolerable interference to other devices.
In the context of a highly integrated wireless SoC like ESP32, EMC problems follow the classic three-element model:
| Element | Specific Manifestation in ESP32 |
|---|---|
| Source | RF output port (2.4GHz transmission), 40MHz main crystal, DC-DC switching current, ground bounce from multiple GPIOs switching simultaneously |
| Coupling Path | Conducted (via power lines), radiated (traces acting as antennas), crosstalk (adjacent signal lines), common impedance coupling (shared traces/vias) |
| Susceptible Device | ADC (12-bit, LSB ≈0.8mV), PLL, RF receive front-end, touch sensors |
ESP32 is both a “perpetrator” and a “victim” – its internal receive front-end is highly vulnerable to external noise, especially in industrial environments where it coexists with motor drives and switching power supplies. EMC design is not a nice-to-have; it’s a prerequisite for stable system operation.
How to Implement ESP32 EMC Design (Step-by-Step)
Step 1: Choose the Stackup – 4-Layer vs 2-Layer Decision
A 4-layer board is not optional – it is Espressif’s mandatory recommendation.
Standard 4-layer stackup:
- L1 (Top): Signals + components
- L2 (Inner 1): Solid ground plane (critical – no splits or signal traces allowed)
- L3 (Inner 2): Power plane + local signals
- L4 (Bottom): Auxiliary signal traces, no components preferred
For better shielding around RF and crystal areas, you can also make L3 a ground plane.
If a 2-layer board is unavoidable, strictly follow these additional rules:
- No components on bottom layer, minimize traces
- Ensure a solid ground plane under the RF, crystal, and chip area
Data shows 4-layer boards offer decisive advantages over 2-layer:
- Signal return path inductance reduced by >10x
- EMI radiation lowered by ~15-20dB
- Impedance control accuracy improved to ±5%
- First-pass EMC test pass rate increased to ~80% (2-layer pass rate <40%)
Step 2: Partitioning – Physical Isolation of RF, Digital, and Analog
Power partitioning: Split analog, digital, and RF power domains on the power plane, then “bridge” them with 0Ω resistors or ferrite beads – providing DC connection while blocking high-frequency noise.
RF “island” design: Surround the RF area with a dense array of ground vias to create a Faraday cage effect, confining 2.4GHz energy to the designated region. Maintain at least 3mm isolation spacing between digital sections (SPI, GPIO, UART) and the RF area.
Step 3: Power Integrity – From PDN to Decoupling Capacitors
The Power Distribution Network (PDN) must maintain low impedance across the entire operating frequency range. ESP32 can draw transient currents of several hundred mA to over 1A during Wi-Fi transmission bursts. Poor PDN design directly causes voltage droop or reset issues.
Main power trace guidelines:
| Parameter | Requirement |
|---|---|
| Main trunk width | ≥25 mil (≥2.5A current capability) |
| Analog power branch | ≥20 mil |
| Layer-change vias | ≥2 parallel 0.3mm vias at trunk transitions |
| Other branches | ≥10 mil |
| Surrounding ground | Good ground shielding to reduce radiation |
Decoupling capacitor placement:
- Add a 10μF capacitor before power enters the chip
- Each VDD pin needs at least one 0.1μF high-frequency capacitor, distance ≤3mm, shortest path on same layer
- RF-related pins (pins 2, 3) need additional CLC/LC filter + 10μF + 0.1μF/1μF combo
- RF power traces can exit at 45°, keeping distance from RF signal traces
- Prefer 0402/0201 small packages to minimize individual ESL
Step 4: Crystal Layout – The Overlooked EMI Landmine
The 40MHz crystal directly impacts Wi-Fi/Bluetooth RF sync accuracy. Per IEEE 802.11, the 40MHz crystal frequency error must not exceed ±800Hz (≈±20ppm).
Five iron rules for crystal PCB layout:
- Clearance: Place the crystal at least 2.5mm away from ESP32 clock pins to prevent interference
- No vias: Clock input/output traces must not change layers – no vias allowed
- No signal traces underneath: Prohibit any high-speed digital signal traces under the crystal – ideally nothing at all
- Ground plane integrity: The adjacent ground plane layer under the crystal must remain solid
- Stay away from strong interferers: Such as DC-DC converters, high-speed clocks (DDR, SDIO_CLK, etc.)
Bonus tip: Surround clock traces with dense ground via stitching for enhanced isolation.
Step 5: Antenna and RF Traces – The Ultimate EMC Test
RF trace rules:
- Must run on outer layer (no vias)
- Use 135° bends or arcs – avoid right angles that cause impedance discontinuities
- On 4-layer boards, RF trace width typically ≥20 mil, calculate precisely using impedance formula
Antenna layout critical guidelines:
| Check Item | Requirement |
|---|---|
| Keep-out area | At least 5mm clearance around antenna radiator, no metal or vias |
| Antenna position | Must protrude from board edge or be at a corner, avoid being surrounded by ground plane |
| Ground plane requirement | Solid ground plane underneath antenna, minimum 20mm×15mm |
| Ground-to-antenna spacing | ≥1.5mm |
Matching network: Reserve a π-type matching circuit footprint (0201 package) on the RF output path. Use a Smith chart tool for impedance optimization before production. Typical IFA antenna radiation efficiency is 40-50%, VSWR target <2.5.
Step 6: Comprehensive EMI Suppression Strategy
Minimize loop area:
- Route high-frequency signals tightly coupled to a ground plane to shrink return current loops
- Differential signals (e.g., USB) must be length-matched and tightly coupled to avoid field mismatch
Ground via array:
- The EPAD ground pad under the chip must connect to the ground plane with at least 9 vias (diameter ≥0.3mm) in a 3×3 matrix, via spacing ≤1.2mm
- Place dense ground vias around the RF area to surround sensitive signals
Shielding can (last resort):
- Only use when ground plane splitting is unavoidable or EMC tests still show violations
- The shield must be multi-point grounded to a solid ground plane – single-point grounding creates a radiating antenna
Checklist Summary
Before sending your PCB for fabrication, verify each of these items:
- Stackup: 4-layer (Top signal/L2 GND plane/L3 power & local signals/Bottom auxiliary)
- Power integrity: Main power trace ≥25mil; decoupling cap (0.1μF+10μF) for each VDD pin; extra CLC/LC filter for RF pins
- Crystal layout: ≥2.5mm from chip, no traces underneath, no vias, solid ground plane on adjacent layer
- RF traces: Outer layer, 135° bends, no vias, π-match footprint reserved
- Antenna keep-out: 5mm clearance around, solid ground plane underneath, protrudes board edge
- EPAD grounding: ≥9 vias (≥0.3mm), 3×3 matrix
- Loop control: High-frequency signals close to ground plane, differential pairs length-matched and tightly coupled
- Partition isolation: ≥3mm spacing between RF and digital areas; power domains split + bridged with ferrite beads
Real Case Example
A Shenzhen smart lock startup developed a Wi-Fi/BLE dual-mode door lock based on ESP32-S3. First hardware revision failed FCC radiated emissions severely (2.4GHz band exceeded limit by 12-15dB, 100-150MHz spurious emissions also over limit). Here is their rework process:
| Problem before rework | Corrective action | Improvement |
|---|---|---|
| 2-layer board, ground plane cut by USB signal traces | Upgraded to 4-layer (Top signal/L2 solid GND/L3 power/L4 auxiliary) | Radiation reduced by 8dB |
| Crystal 0.8mm from chip, SPI traces underneath | Moved to 2.5mm away, cleared underneath, solid ground plane on adjacent layer | 100MHz spurious reduced by 10dB |
| Decoupling caps scattered 5-10mm away | 0.1μF cap per VDD pin (0402, <2mm), RF pins got 10μF+0.1μF+CLC filter | Power noise reduced by 60% |
| Antenna surrounded by large ground plane | Antenna protruding from board edge, 20mm×15mm ground plane underneath | Range increased from 35m to 75m |
Result: Passed EMC in a single test round, achieved CE/FCC dual certification, saving approximately RMB 35,000 (≈US$4,800) in certification test costs.
What Factors Affect ESP32 EMC Performance
Stackup and Ground Plane Integrity
Weight: ★★★★★. A ground plane cut by vias or traces forces return currents to detour, creating radiating antennas. Measurements show that fewer than 6 EPAD ground vias increase 2.4GHz spurious emissions by 3-5dB.
Decoupling Capacitor Placement and Selection
Weight: ★★★★☆. Every additional 1mm of distance adds ~0.5-1nH of parasitic inductance, significantly degrading high-frequency suppression.
Crystal Frequency Accuracy
Weight: ★★★★☆. Signal traces under the crystal or an incomplete ground plane on the adjacent layer inject frequency jitter via capacitive coupling.
Antenna Keep-out and Matching Network
Weight: ★★★★★. Any metal near the antenna dramatically shifts its resonance frequency and radiation pattern.
Signal Loop Area
Weight: ★★★★☆. Loop inductance L ∝ loop area A – double the area → double the inductance → double the radiated energy.
Main Power Trace Width and Via Count
Weight: ★★★☆☆. Insufficient vias at power trunk layer transitions add extra inductance, causing voltage droop.
Crystal Trace Routing
Weight: ★★★☆☆. Using vias on clock traces introduces impedance discontinuities and additional radiation sources.

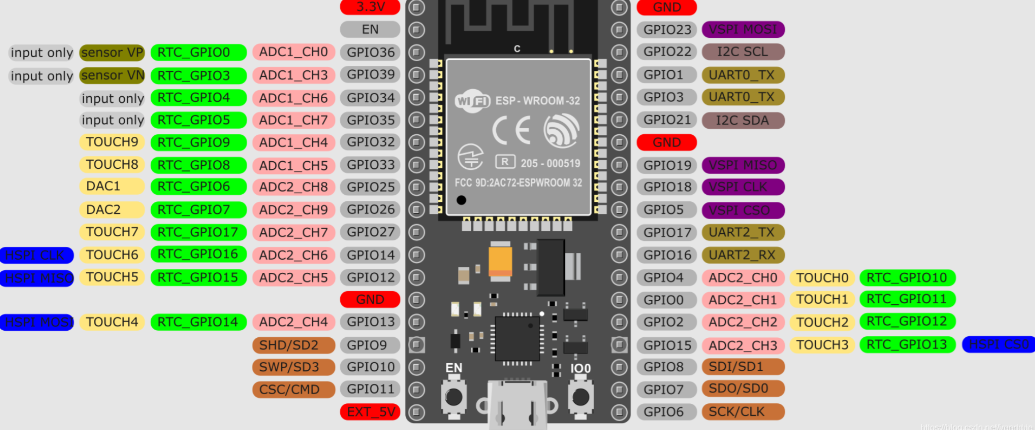

GPIO Layout and Decoupling
Weight: ★★☆☆☆. Multiple GPIOs switching simultaneously cause ground bounce and power sag. High-speed GPIOs should have dedicated decoupling caps.
How to Improve EMC Performance
| Improvement Method | Expected Result | Difficulty | Cost |
|---|---|---|---|
| 2-layer → 4-layer upgrade | EMI down 15-20dB, pass rate doubles | Medium | Medium |
| Decoupling cap optimization (<3mm + small package) | Power noise reduced ~50% | Very low | Very low |
| Crystal layout rework | 100MHz spurious down 8-12dB | Low | None |
| Antenna keep-out expansion | Range increase 30-50% | Low | None |
| RF trace arc/135° bends | VSWR reduced ~15-20% | Low | None |
| Increase EPAD ground vias | Spurious down 3-5dB + better heat dissipation | Very low | None |
| Differential pair length matching | Common-mode radiation down 6-10dB | Medium | None |
Common Mistakes / Risks
| Mistake | Consequence |
|---|---|
| 2-layer board with no EMC compensation | Radiated emissions exceed limit by 10-15dB+, >60% first-pass failure rate |
| Signal traces or vias under crystal | Clock jitter → frequency variation → RF sync loss |
| Antenna completely surrounded by ground / not protruding | Pattern distortion, VSWR >3.0 |
| Decoupling cap >5mm from chip pin | Increased parasitic inductance, capacitor becomes ineffective |
| RF trace using vias | Impedance discontinuity → reflections → higher VSWR |
| Fewer than 6 EPAD vias | 2.4GHz spurious up 3-5dB, junction temp rises >8°C |

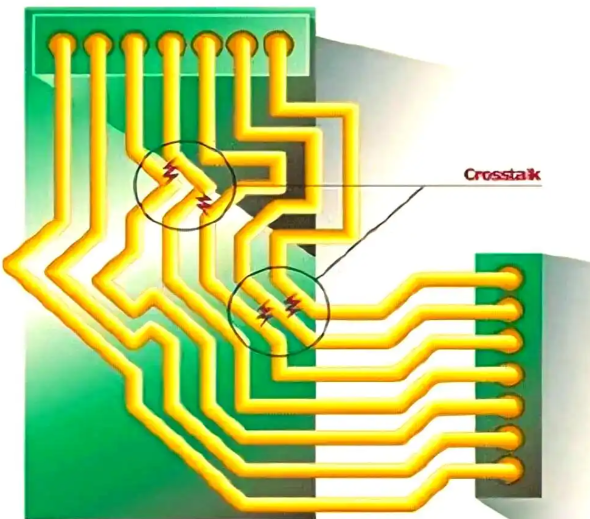

| Long parallel GPIO and RF traces | Severe crosstalk → reduced RX sensitivity |
| Power split without bridge (bead/0Ω) | High-frequency noise leaks at split boundary → “slot antenna” radiation |
| No π-match footprint reserved | Unable to optimize impedance matching post-production |
| 90° RF trace bends | Impedance discontinuity → extra reflections and harmonic radiation |
Summary
ESP32 EMC design is a systemic engineering discipline, not a collection of isolated “tips”. The core logic:
- Source control > path blocking > victim shielding: Always start with the interference source (power integrity, clock layout, loop area) – this is more economical and effective than adding shields or filters later.
- Stackup determines the EMC ceiling: 4-layer is the starting point for production-ready compliance. 2-layer is barely usable only for very simple sensor applications with strict adherence to Espressif’s supplementary rules.
- Minimizing return loops is the highest EMI suppression principle: High-frequency traces must run tightly coupled to a ground plane to shorten return current paths.
- Certification testing is a verification tool, not the finish line: Even before formal testing, use a spectrum analyzer with near-field probes to scan for suspected radiation sources.
Final advice to hardware engineers: Investing 100% effort in EMC optimization at the design stage costs only 10% of late-stage rework, and the payoff is immeasurable.
FAQ
1. Can I really not use a 2-layer board for ESP32 products?
You can, but with strict limitations. Espressif provides supplementary rules for 2-layer designs: components and traces on top layer; bottom layer has no components and minimal traces; ensure a solid ground plane under RF, crystal, and chip. 2-layer boards have inherently weaker EMC performance and are suitable for functional demos or low-volume prototypes. First-pass EMC test pass rate is ~40%, so budget for 2-3 test rounds.
2. How much EMC advantage does a 4-layer board actually provide?
The second layer of a 4-layer board (solid ground plane) provides a unified, low-impedance return path for all signals – a structural advantage impossible on 2-layer boards. Data shows 4-layer boards lower EMI radiation by 15-20dB and raise first-pass EMC test pass rate from ~40% to ~80%. Considering rework costs, 4-layer boards have a lower total lifecycle cost.
3. Is crystal layout really that important?
Absolutely. A 40MHz crystal frequency error exceeding ±20ppm directly causes Wi-Fi/Bluetooth RF sync loss. Vias on crystal traces introduce severe impedance discontinuities that degrade clock signal quality, leading to packet loss, disconnections, and other instability – often temperature-dependent (fine at room temperature, failing when hot) and extremely difficult to debug.
4. Can I place the antenna inside the PCB interior?
No. The antenna must be at the board edge with adequate keep-out clearance. The radiator needs free space to radiate. If surrounded by ground plane or copper, it becomes “trapped in a Faraday cage” – radiation efficiency plummets and the pattern distorts severely.
5. My ESP32 board works fine – does that mean it’s EMC compliant?
Functional correctness and EMC compliance are two different things. EMC testing checks that your device does not emit electromagnetic energy above legal limits. Many functionally perfect boards fail radiated emissions tests dramatically. A functional failure means the board is “broken”; an EMC failure means the board is a “polluter” – it may still work, but it cannot be legally sold.
